Electric Moke
Hilima Company is a leading China Electric Moke manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Electric Moke have been satisfied by many customers.Customers in a variety of industries choose XX products for two simple reasons: the products are designed and manufactured to high quality standards, and they are available at a fair market value.
Send Inquiry
PDF DownLoad
Product Description

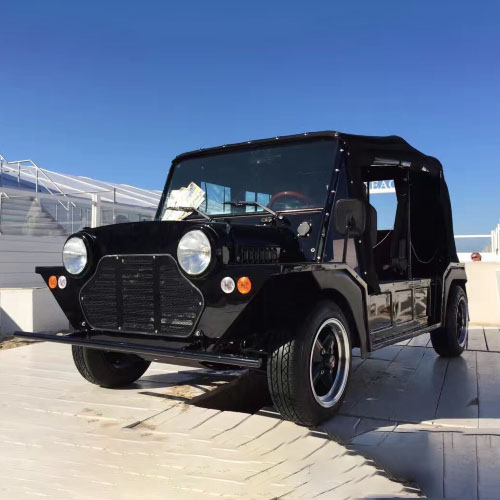

1. Product introduction of the ELECTRIC MOKE
ELECTRIC MOKE is the fist product of our company, which follows the century-old classic and is the perfect return of a century-old classic model.
·All chassis and body are aluminum manganese alloy lightweight design.
·ELECTRIC MOKE has been certified by the EEC of the European Union and DOT of the United States
·E-MOKE has high - low automatic switch of the two - speed transmission, so that the car climbing is more powerful, high-speed is more stable.
·E-MOKE uses electronic self - brake system, which is safer and more efficient.
·MAX 20 KW AC motor, strong power, high efficiency.
2. Product parameter of the ELECTRIC MOKE
| Measurement Parameter | |
| (L*W*H) | 3290*1530*1500 mm |
| Wheelbase | 2120 mm |
| Wheel track front/rear | 1280mm/1280mm |
| Ground Clearance | 180mm |
| Max climbing ability | 23° |
| Curb Weight | 430Kg |
| Full load | 960Kg |
| Range | 160Kms |
| Seats | 4 |
3. Product feature and application of the ELECTRIC MOKE
-
In the seaside, in the grassland, in the beautiful scenic spots, there are her beautiful figure.
-
A wonderful car for festive revelry
-
We are in the same club
-
Sea and sky, I am the most beautiful guy
Detailed parameters
| Performance specs | Endurance mileage | km | 92 kms/90km/h |
| km | 150kms/50km/h | ||
| Max grade ability | % | 40% （@15km/h） | |
| Motor specs | Motor model | GLMI10A1 | |
| Motor power (rated/peak) | KW | 15kw/30KW | |
| Motor rpm (rated/max) | r/min | 3500/7000 | |
| Motor rated voltage | V | 108 V | |
| Insulation class | H | ||
| Protection class | IP65 | ||
| Motor controller | GLCI6008A2 | ||
| Battery pack specs | Battery rated capacity | AH | 166 |
| Battery pack rated voltage | V | 108V | |
| Total energy | KWH | 16 | |
| Max continuous charge current | A | 120 | |
| Max continuous discharge current | A | 145.6 | |
| Peak discharge current | A | 250 (Protected to 250 A) | |
| Standard voltage | V | 103.6 | |
| MAX voltage | V | 116 | |
| Battery pack weight | kg | 131.2 | |
| Battery cell model | 18650 | ||
| Battery core type | Ternary lithium battery | ||
| Battery working temperature | ° | -20°------60 ° | |
| Battery pack cooling method | Natural cooling | ||
| Excess voltage protection | V | 4.15 | |
| Under voltage protection | V | 2.8 | |
| System self-discharge rate | Keep 95% at 25 days, 25°C | ||
| IP rated | IP67 | ||
| Charger specs | Input voltage | V | 220V±15 % |
| Input current： | A | ≤16A | |
| Efficiency : | ≥93% | ||
| Power factor : | ≥0.98 | ||
| Rated output voltage : | V | 60V DC | |
| Cooling method | Forced air cooling | ||
| Charging time 20A/3.3KW | hours | 3-6 hours from 20%----100% | |
| DC SPECS | Input voltage range | V HZ | AC90----264V 50HZ |
| Input rated current | A | 50----198 | |
| Output voltage | V | 14 | |
| Rated current | A | 72 | |
| Peak current | A | 100 | |
| Rated power | KW | 1 | |
| Peak power | KW | 1.2 (6 mins) |
