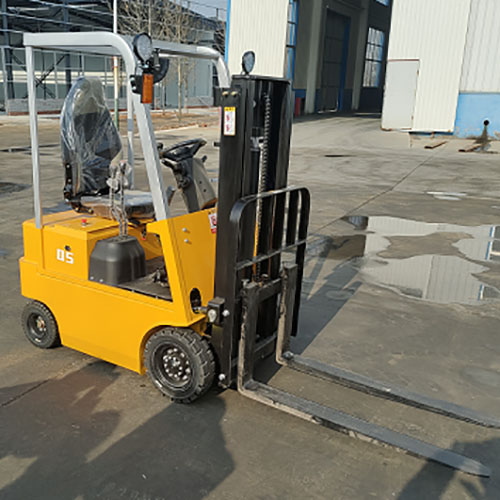

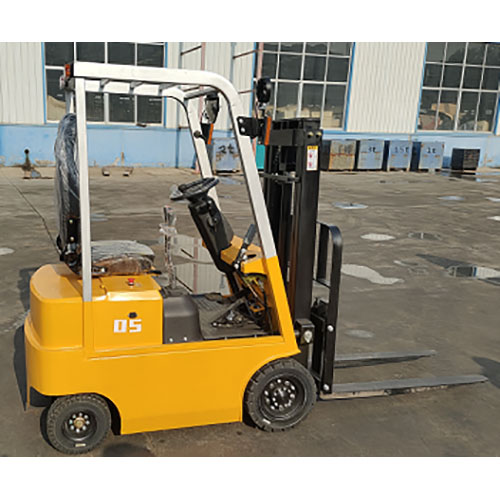

1.0 T electric forklift is a new product of our company. It adopts high capacity lead-acid maintenance-free battery, which has low cost and large capacity. The operating cost is one third of that of a conventional diesel engine version.
·The body, head and arm of the whole car are made of high strength manganese steel, which is resistant to extrusion and wear and no deformation.
·The whole car body adopts baking process, paint adhesion is strong, never change color.
·5 KW AC permanent magnet, strong power, high efficiency.
|Tilt of the mast, front/rear||°||5/10|
|Overhead guard height||mm||2210|
|Truck body length(fork excluded)||mm||2656|
|Truck body width||mm||1260|
|Ground clearance under mast||mm||97|
|Ground clearance at center of wheelbase(laden)||mm||125|
|Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)||mm||3400|
|Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)||mm||3600|
|driving speed, full load/unload||km/h||11/12|
|lifting speed, full load/unload||mm/s||260/280|
|speed of lowering, full load/unload||mm/s||550|
|maximum climbing capacity, full load/unload||%||15/20|
|service mass(with battery)||kg||1570|
|battery voltage /nominal capacity||V/Ah||60V/120Ah|
|drive motor power-60 minutes||kW||5 AC permanent magnet motor|
|lift motor power-15 minutes||kW||4.5 AC Permanent magnet motor|
|drive motor controlling mode||MOSFET/PMSM|
|lifting motor controlling mode||MOSFET/PMSM|
|service brake/parking brake||Hydraulic|
|hydraulic system working pressure||Mpa||14.5|
